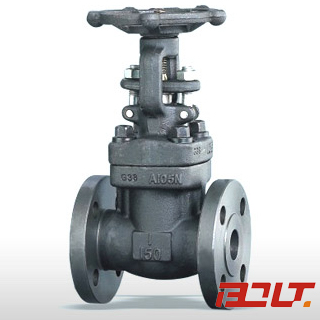

您現在的位置：首頁 > 產品中心 > 鍛鋼法蘭閘閥
標準材料規格
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM | |
|
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) | ||
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Seat Ring |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Wedge |
A276 410 & 430 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
4 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
5 |
Gasket |
Corrugated SS + graphite |
SS + PTFE | ||
|
6 |
Bonnet |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
7 |
Bonnet Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
8 |
Pin |
A276 420 |
A276 304 | ||
|
9 |
Gland |
A276 410 |
A182 F304(L) |
A182 F316(L) | |
|
10 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
11 |
Gland Flange |
A105 |
A182 F11 |
A182 F304(L) |
A182 F316(L) |
|
12 |
Gland Nut |
A193 2H |
A194 4 |
A194 8 |
A194 8M |
|
13 |
Yoke Nut |
A276 410 | |||
|
14 |
H.W.Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
15 |
Nameplate |
SS | |||
|
16 |
Handwheel |
A197 | |||
|
17 |
Bearing Gasket |
A473 431 | |||
|
18 |
Stem Packing |
Flexible Graphite |
PTFE | ||
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3CH3OOH etc | ||
|
Suitable Temperature |
-29~425 |
-29~550 |
-29~180 | ||
注：可根據要求提供的其他材料。
外形尺寸和重量（公斤）150LB?的600Lb
|
NPS |
1/2" |
3/4" |
1" |
1/4" |
1-1/2" |
2" | ||
|
L(RF)L1(BW) |
150 |
108 |
117 |
127 |
140 |
165 |
203 | |
|
300 |
140 |
152 |
165 |
178 |
190 |
216 | ||
|
600 |
165 |
190 |
216 |
229 |
241 |
292 | ||
|
H(OPEN) |
150,300 |
158 |
169 |
197 |
236 |
246 |
283 | |
|
600 |
169 |
197 |
236 |
246 |
283 |
320 | ||
|
W |
100 |
100 |
125 |
160 |
160 |
180 | ||
|
Weights |
150 |
RF |
4.5 |
5.2 |
8.2 |
11.5 |
12.5 |
20.3 |
|
BW |
2.8 |
3.3 |
5.4 |
7.1 |
8.2 |
12.5 | ||
|
300 |
RF |
4.8 |
6.2 |
9.3 |
14 |
15.5 |
23.4 | |
|
BW |
3.5 |
4.4 |
6.8 |
8.1 |
9.2 |
15.4 | ||
|
600 |
RF |
5.9 |
7.4 |
10.4 |
16.2 |
17.5 |
28.3 | |
|
BW |
4.5 |
5.1 |
8.2 |
10.5 |
12.4 |
20.1 | ||
外形尺寸和重量（公斤）900LB?1500LB
|
NPS |
1/2" |
3/4" |
1" |
1/4" |
1-1/2" |
2" | |
|
L(RTJ) |
900,1500 |
216 |
229 |
254 |
279 |
305 |
371 |
|
L1(BW) |
900,1500 |
216 |
229 |
254 |
279 |
305 |
368 |
|
H(OPEN) |
197 |
197 |
236 |
246 |
283 |
330 | |
|
W |
125 |
125 |
160 |
160 |
180 |
200 | |
|
Weights |
RTJ |
7.2 |
11.5 |
15.6 |
16.2 |
22.6 |
32.8 |
|
BW |
5.2 |
9.3 |
12.4 |
13.8 |
18.9 |
27.5 | |
